CNC Milling
Key Equipment Features
Up to 5 axis capability
-
Up to 5 axis capability
-
Up to 22,000 rpm spindle speed
-
Integrated Renishaw Touch Probing
-
Rigid Tapping to 8000rpm
-
630x530x465mm machining envelope
-
1.7 sec Tool changers
-
100 bar Hi Pressure Through Spindle Coolant
-
Up to 122 tools (automatic tool changers)
-
Pallet loading
CNC milling | Qty | X axis | Y axis | Z axis | No of Axis | No of Tools | Remarks |

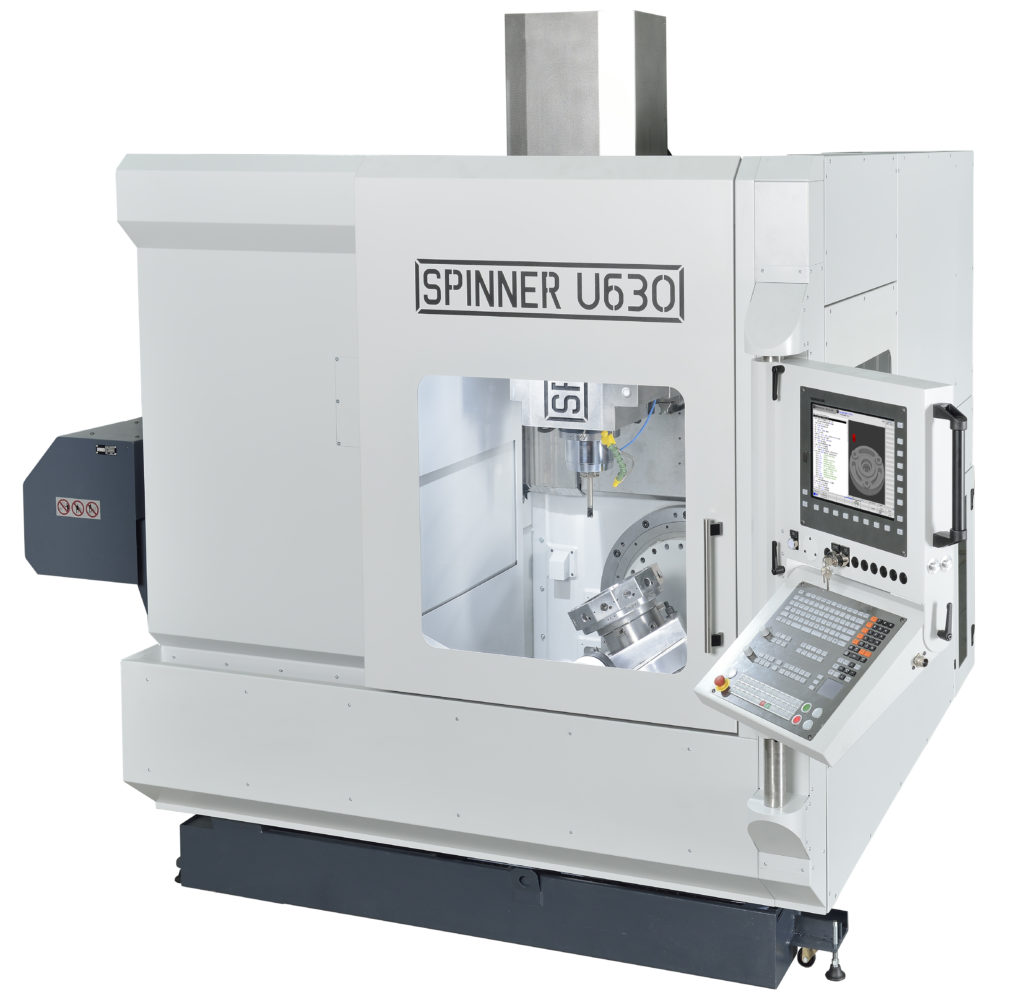

Spinner U-630 ADVANCED | 1 | 630mm | 530mm | 465mm | 5 | 122 | Fitted with Erowa loader |
Brother TC 31A | 1 | 350mm | 250mm | 350mm | 3 | 26 | Twin Pallet |
| Brother TC32B QT | 1 | 550mm | 400mm | 415mm | 3 | 40 | Twin Pallet/70bar high pressure coolant. |
Brother TC32A | 3 | 450mm | 320mm | 410mm | 3 | 26 | Twin Pallet/70 Bar High Pressure Coolant/ Rotary Indexers |
Bridgeport Interact 520 | 1 | 510mm | 400mm | 450mm | 3 | 20 |
